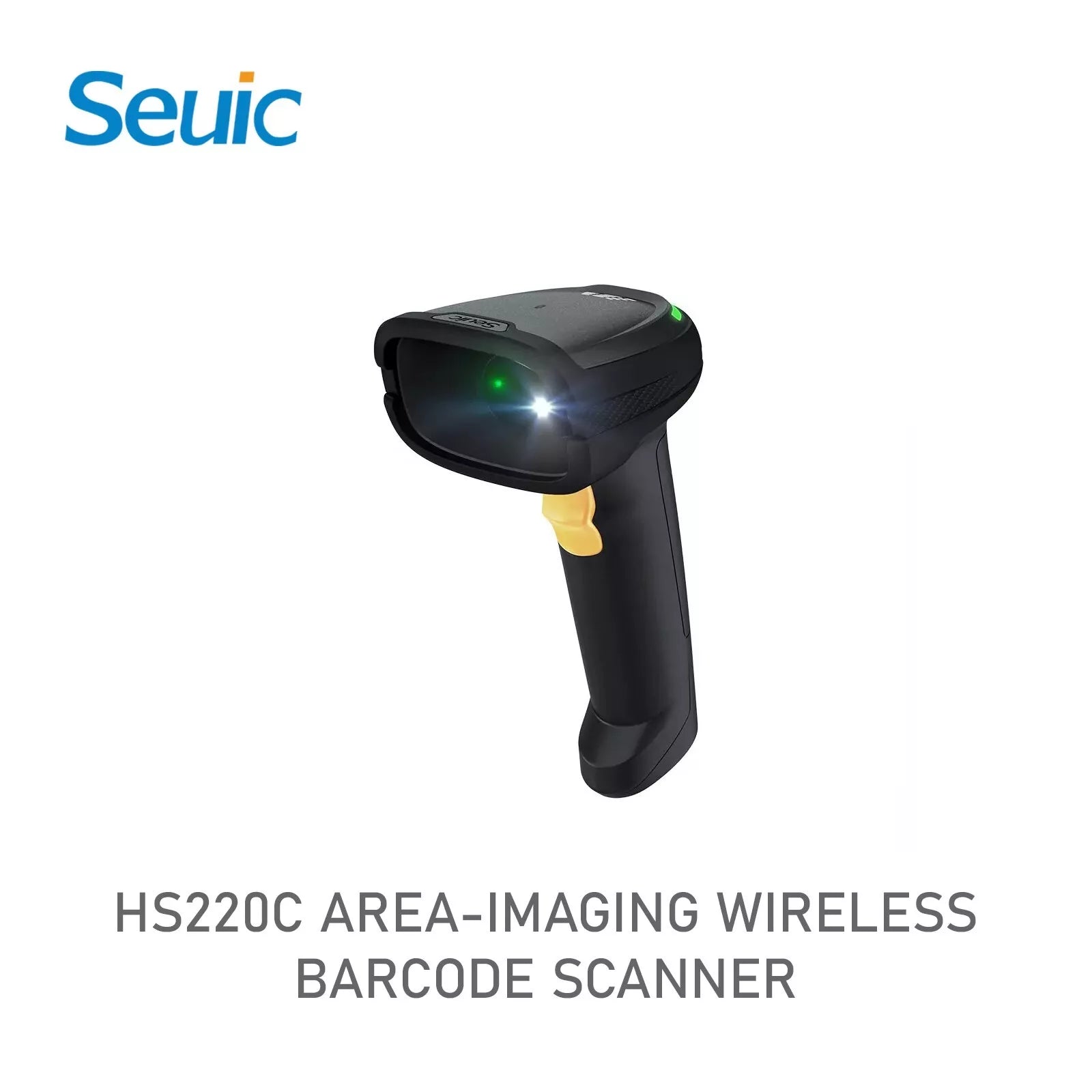

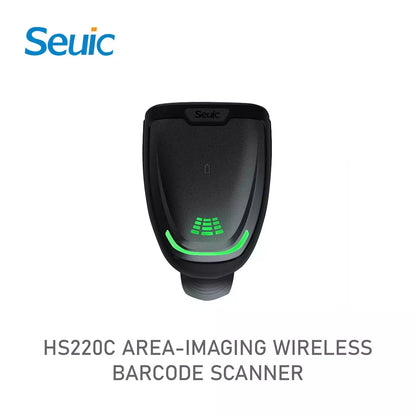

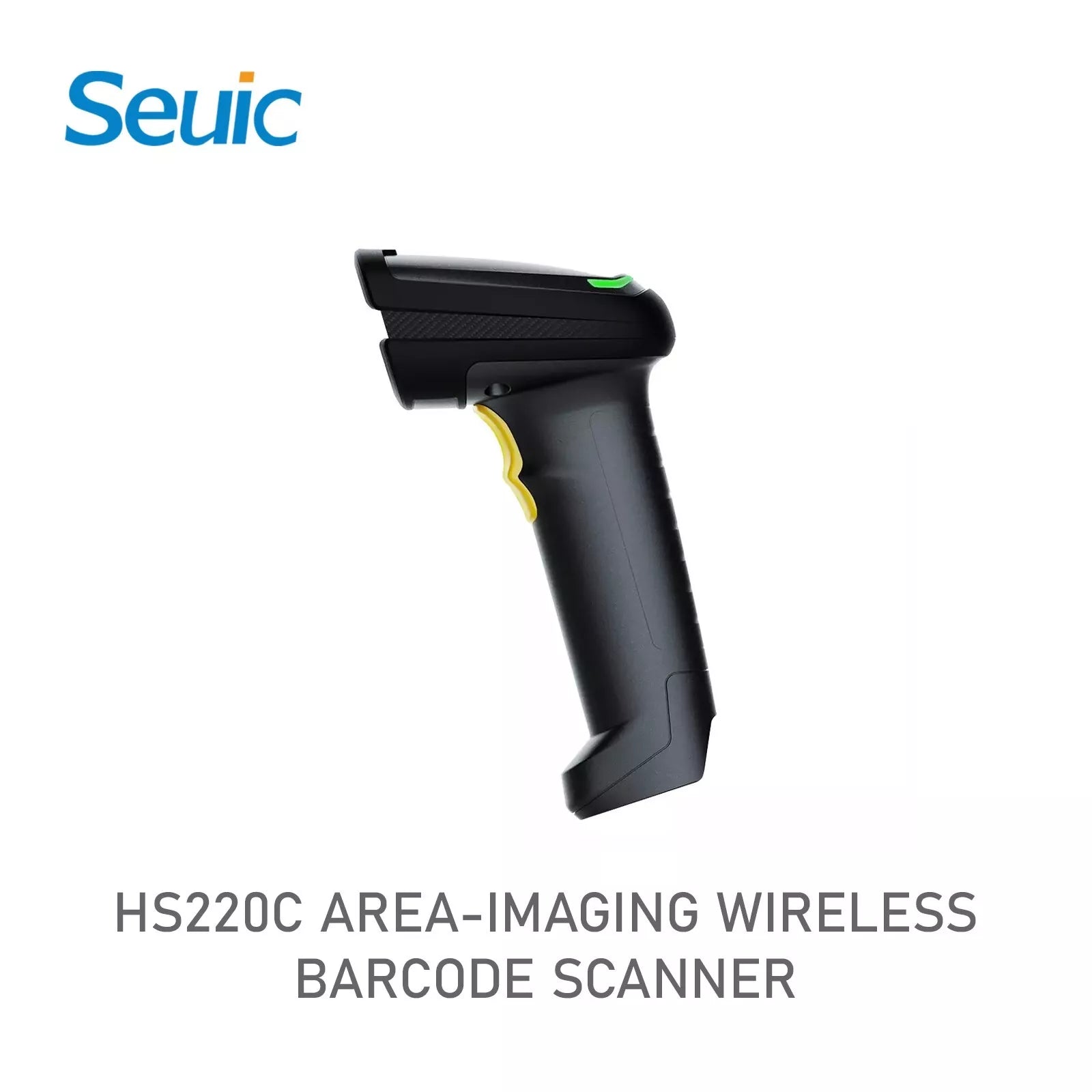

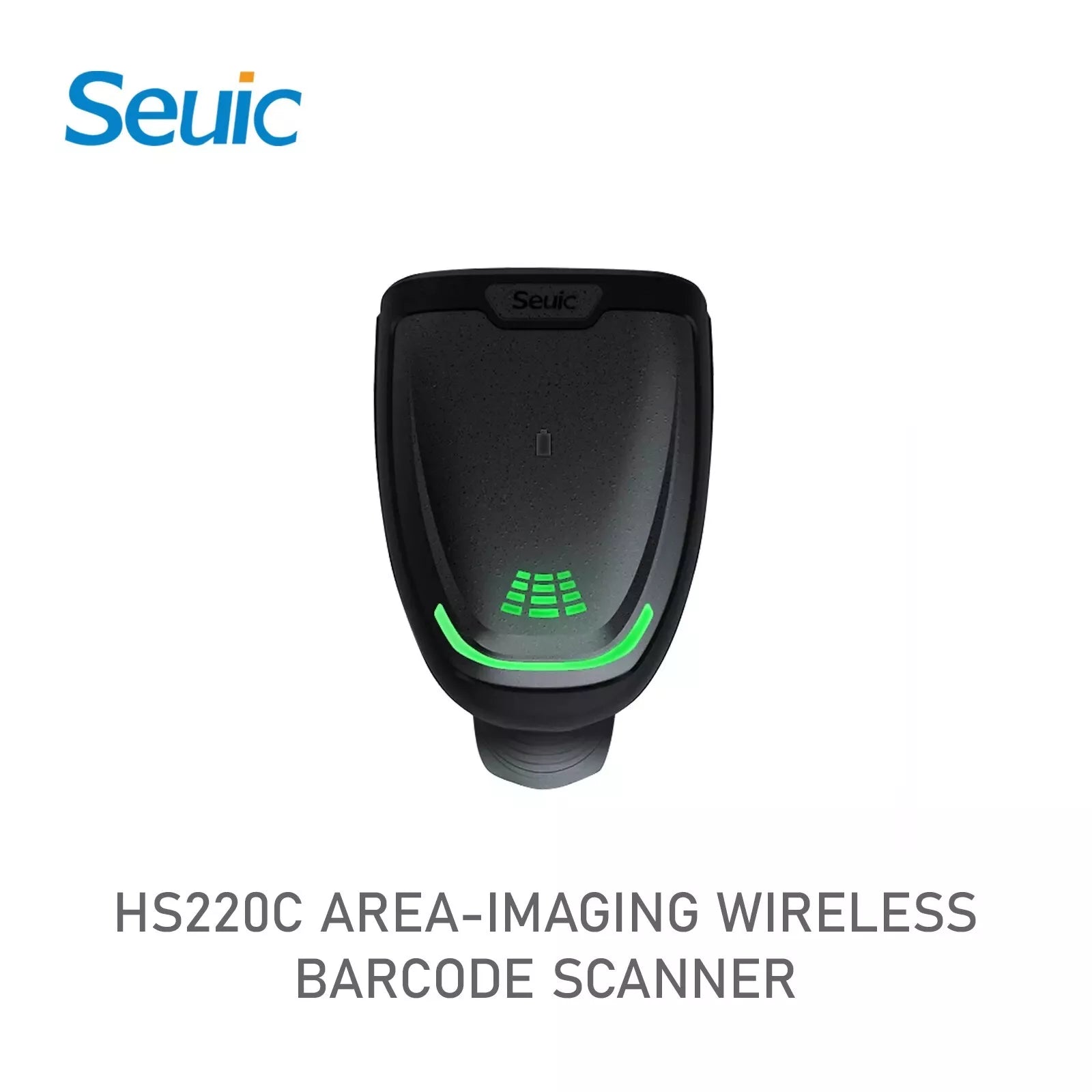

SEUIC HS220C AREA-IMAGING WIRELESS BARCODE SCANNER
SEUIC HS220C AREA-IMAGING WIRELESS BARCODE SCANNER
20% VAT for UK Customers will be applied during Checkout
Couldn't load pickup availability
| Technical Specifications | |
|---|---|
| Condition | Brand New |
| Sensor Speed | 60fps |
| Certificates | CE, FCC, RoHS, UN38.3 |
| MPN | HS220C |
| Communication Interface | RS232, USB keyboard, USB COM |
| Illumination LEDs | White |
| Impact Specification | 2000 rounds of 0.5m tumble |
| Charge Time From Empty to Full | 5~6 hours over USB |
| Light Levels | 0 to 100,000 Lux |
| Humidity | 5% to 95% RH Non-Condensing |
| Scan Angle | Pitch Angle ±60° and Skew Angle ±55° |
| Storage Temperature | -4 °F to 158 °F/-20°C to 70°C |
| Operating Temperature | 32 °F to 122 °F/0°C to 50°C |
| Environmental Sealing | Sealing IP54 (Water and Dust Resistant) |
| Vibration Motor | Support |
| Dimension | 166.2 mm L x 68.5 mm W x 105.5mm H |
| Weight | 7.1oz/About 200g |
| ESD Protection | ±15kV Air discharge, ±8kV direct discharge |
| Brand | Seuic |
| Type | Barcode Scanner |
| Battery Capacity | Rated Capacity : 2150mAh | Typical Capacity : 2500mAh |
| Scan Density | 1D code: 3mil | 2D code: 5mil |
| Image Sensor | 1280 * 1024 CMOS Sensor |
| Aiming | Green LED |
| Shell Material | Highly Resistant Industrial Plastic |
| Country/Region of Manufacture | China |
| Number of Scans | 40,000 |
| EAN | Does Not Apply |
Share
Collapsible content
Description
The HS220C is a versatile wireless scanner suitable for manufacturing, retail, e-commerce, and logistics. It excels in various applications, including automated factory assembly, retail checkout and inventory management, as well as logistics and warehousing. Whether reading paper barcodes, wrinkled or distorted product codes, or laser-engraved barcodes on printed circuit boards and metal surfaces, the HS220C delivers outstanding decoding performance and a superior user experience.
Strong Decoding Performance
• Self-developed decoding algorithm, accurate
and fast recognition of complex barcodes
Convenient Pairing, Intelligent Paging
• One stroke pairing, convenient connection
between the scanner and the communication
cradle; wireless paging button, quickly locate
the position of the scanner.
Versatile Usage
• Flexible and durable, multi-industry versatility, widely used in manufacturing, retail, e-commerce and logistics, etc.
Specifications

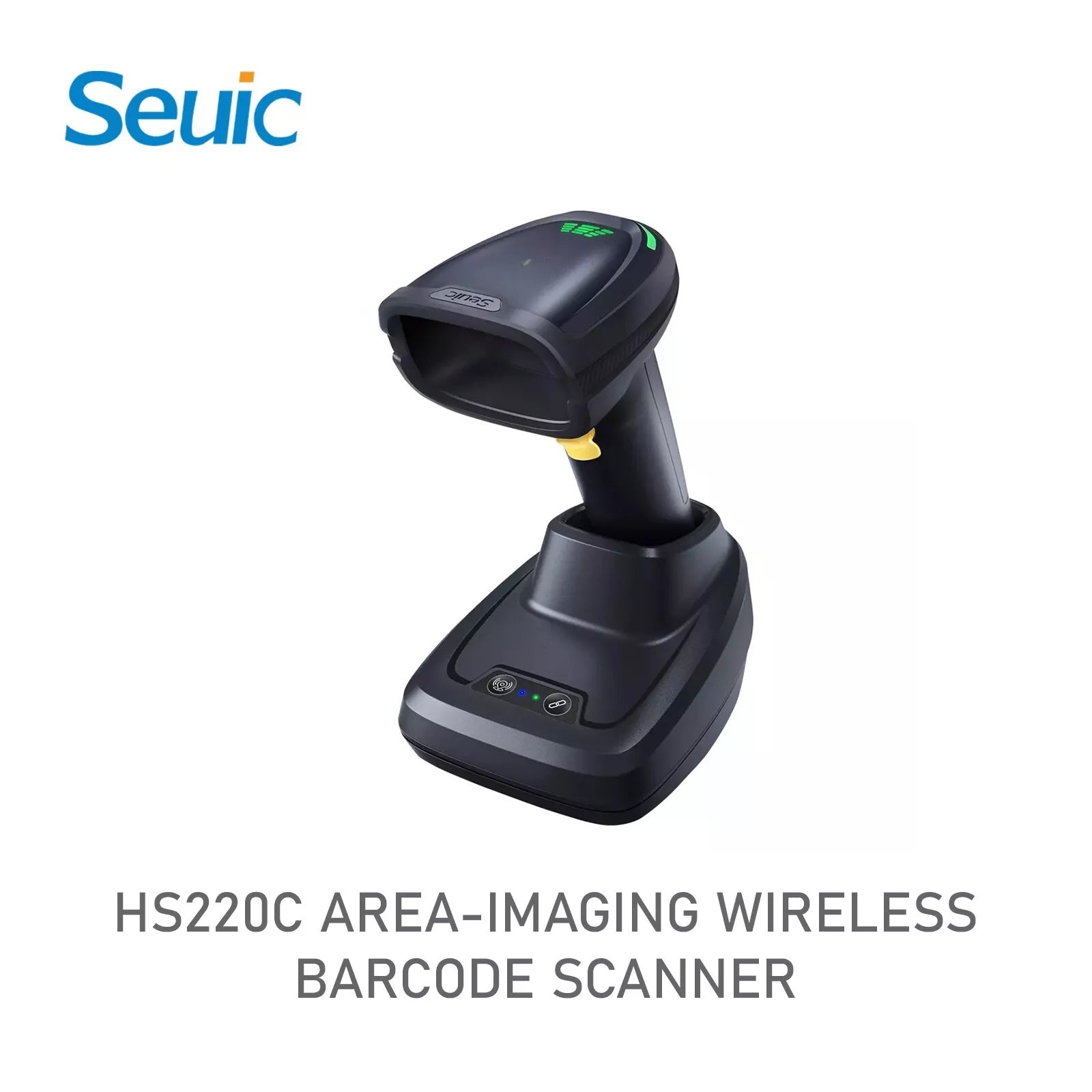

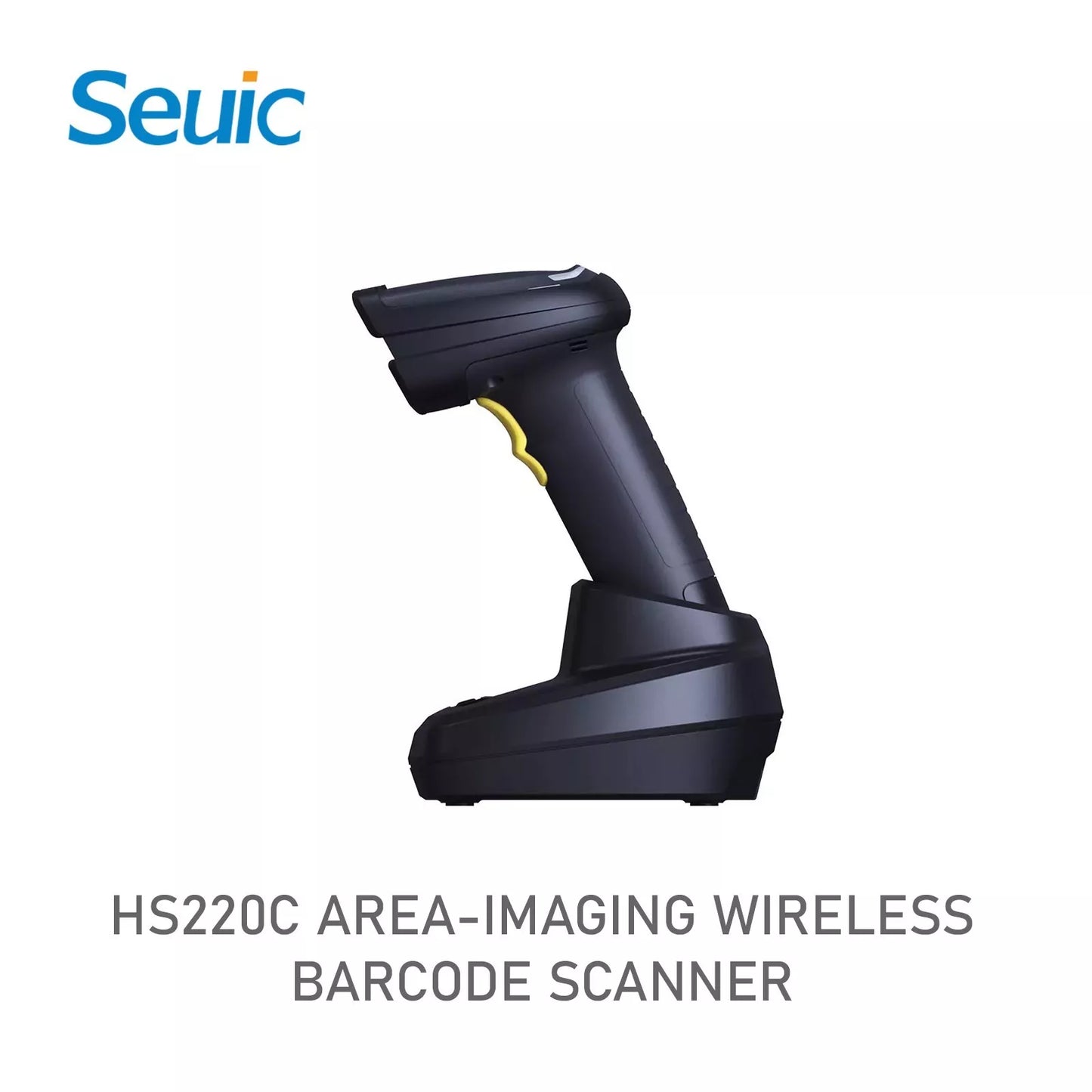

Standard Cradle Specifications
Normal Rated Charging Power: Only USB charge :2.5W
Dimension: 90*115*75 mm
Weight: 167.75g±3g
Operating Temperature: 32 °F to 122 °F/0°C to 50°C
Storage Temperature: -4 °F to 158 °F/-20°C to 70°C
Humidity: 5% to 95% RH non-condensing
Environmental Sealing: IP51
Mechanical Shock: 20 rounds of 3.9 ft./1.2m drops across the operating temperature range
Shell Material: Highly resistant industrial plastic
ESD Protection: ±15kV Air discharge,±8kV direct discharge
Certificates: CE, FCC, RoHS
