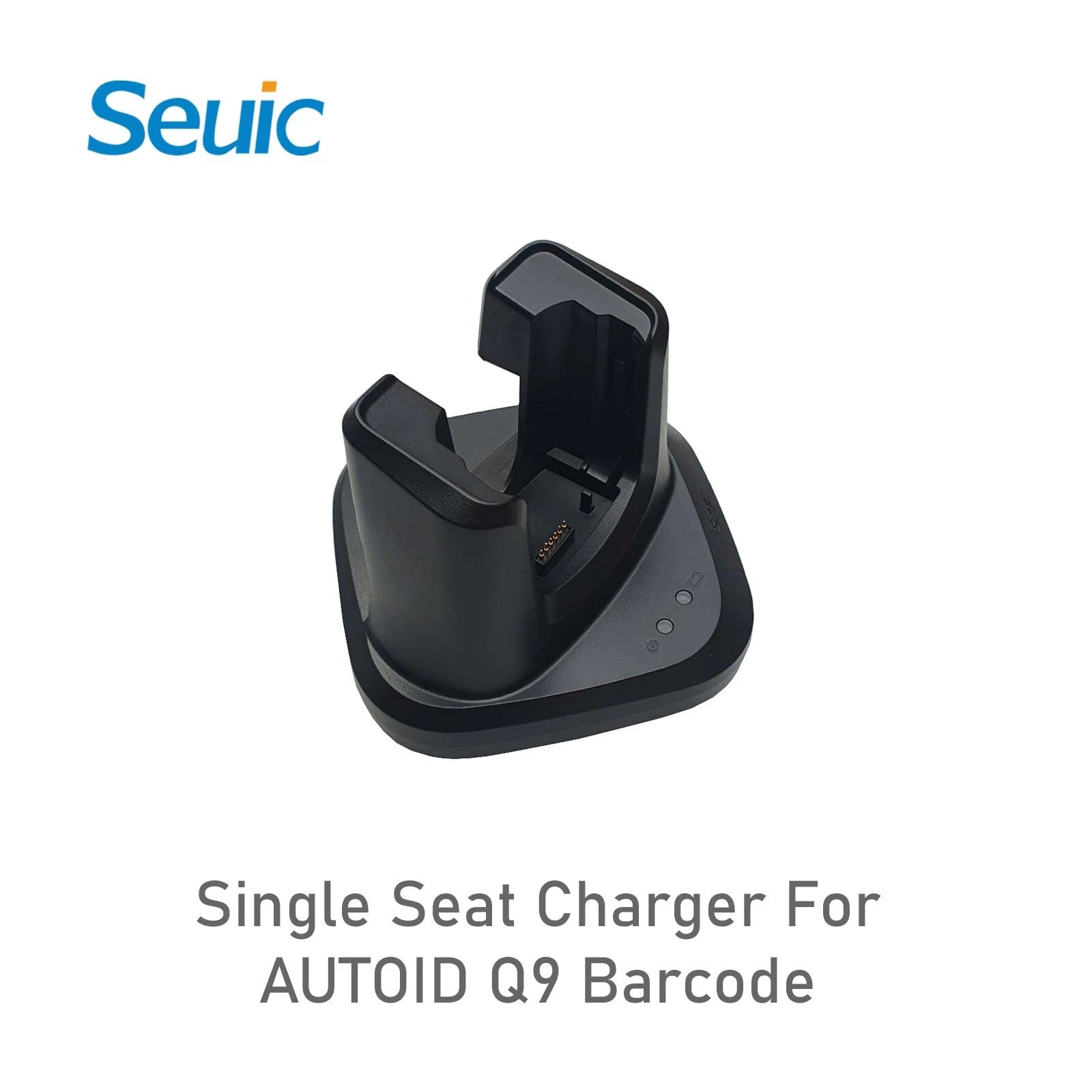

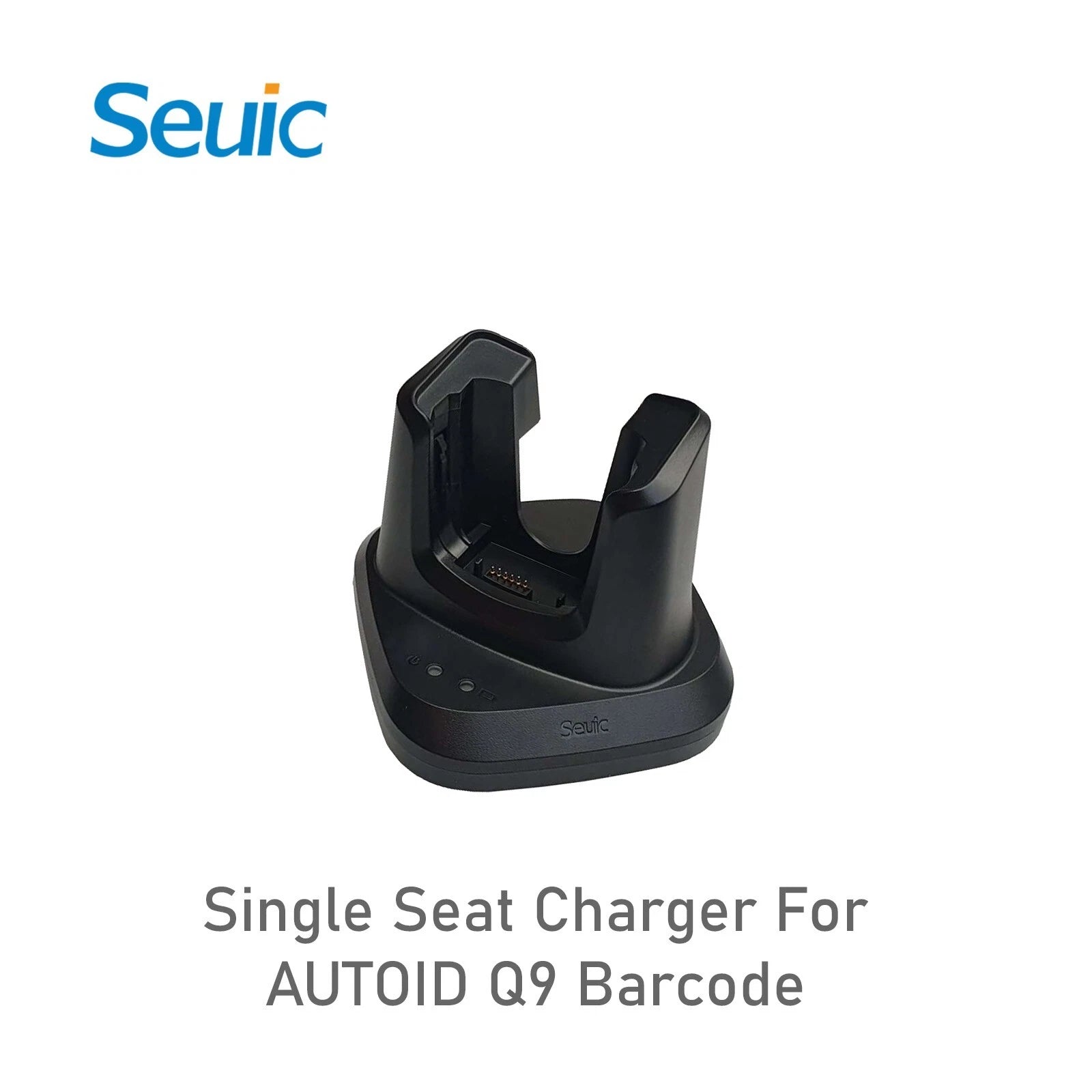

Seuic Single Seat Charger For AUTOID Q9 Barcode Scanner PDA
Seuic Single Seat Charger For AUTOID Q9 Barcode Scanner PDA
20% VAT for UK Customers will be applied during Checkout
Couldn't load pickup availability
| Technical Specifications | |
|---|---|
| Condition | Brand New |
| Compatible Brand | For Seuic |
| Compatible With | AutoID Q9 |
| Data Interface | DC interface; TYPE-C; RJ45 |
| Manufacturer warranty | 6 months |
| Safety Specification | GB60950 UL1950 GB4943 |
| IP Protection | IP30 |
| MPN | For AutoID Q9 |
| Dimension | 160 x 115 x 111mm (L x W x H) |
| Rated Input Current | DC 5A (MAX) |
| Spring Pin Connector | On resistance 100mΩ |
| Weight | <258g |
| Brand | Seuic |
| Type | Docks & Cradles |
| Rated Output Voltage | DC 4.75-5.5V (Complete Machine) / DC 4.40V ± 0.05V (Battery) |
| DC Interface Insertion & Extraction Force | ≥0.3KGF |
| Standard Accessories | 5V 5A Adapter x 1, Packing Materials |
| Country/Region of Manufacture | China |
| Rated Input Voltage | DC 4.75-5.5V |
| Rated Output Current | DC 2A MAX (Complete Machine) / DC 2A MAX (Battery Charging) |
| EAN | Does not apply |
Share
Collapsible content
Description
Battery Charging Instructions

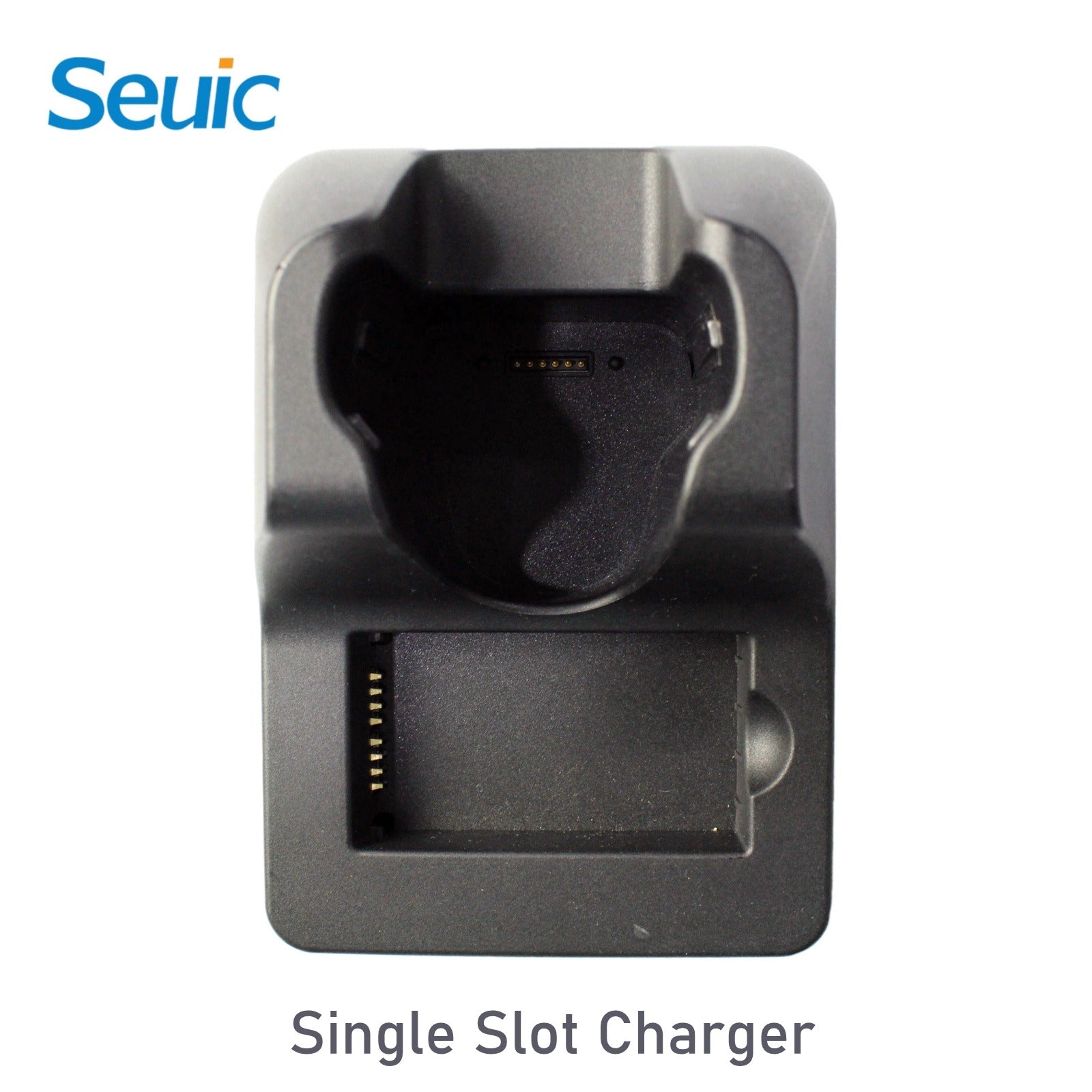

1. Fix the battery in the battery card slot of the single seat charger.
2. Using AC power, insert the AC plug of the supporting power adapter into the standard socket and make it contact well.
3. Use the supporting DC charging line to reliably connect the DC head of the power adapter with the single seat charger.
4. Status indication of battery charging indicator:
• Off: No battery
• Red: Charging
• Green: Charge Complete
• Red/Green Flashing: Malfunction / Faulty
5. During charging, it is normal for the battery and the single seat charger to have slight heating.
ATTENTION
• Please use the battery in a normal indoor environment. Temperature: 0 ~ 55 ℃, relative temperature: ＜ 90% RH.
• During use, keep away from heat source and high voltage, avoid children playing with the equipment, and do not beat the charging base.
• Please keep the connector clean. Do not let other metal objects directly contact the connector of the charging base during use, otherwise the product may be damaged due to danger or short circuit.
• Do not throw and impact the equipment or use it in a strong vibration environment, otherwise the charging effect will be damaged or affected.
• This equipment can only be charged with the supporting power adapter.
Specifications
Complete Machine Charging Instructions

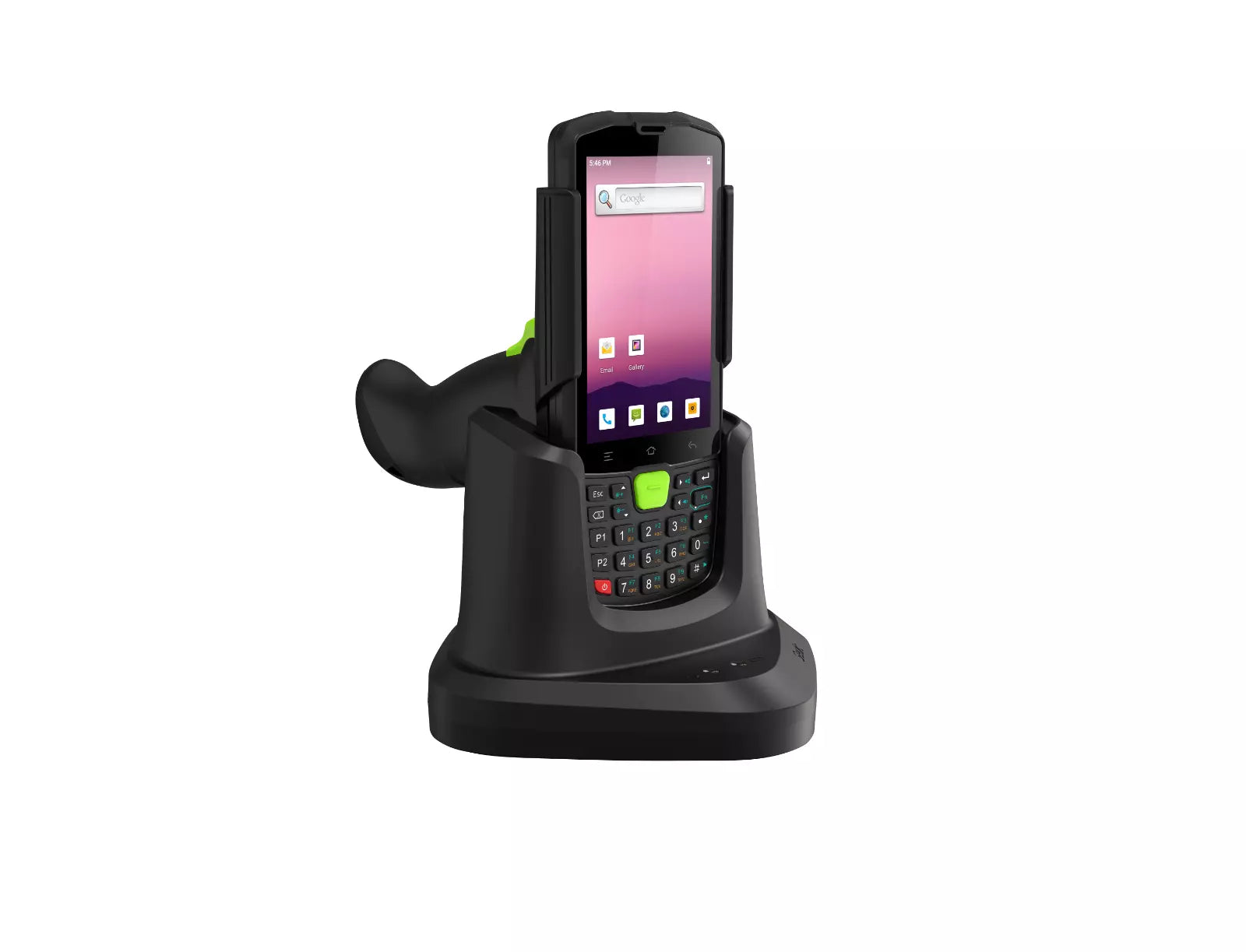

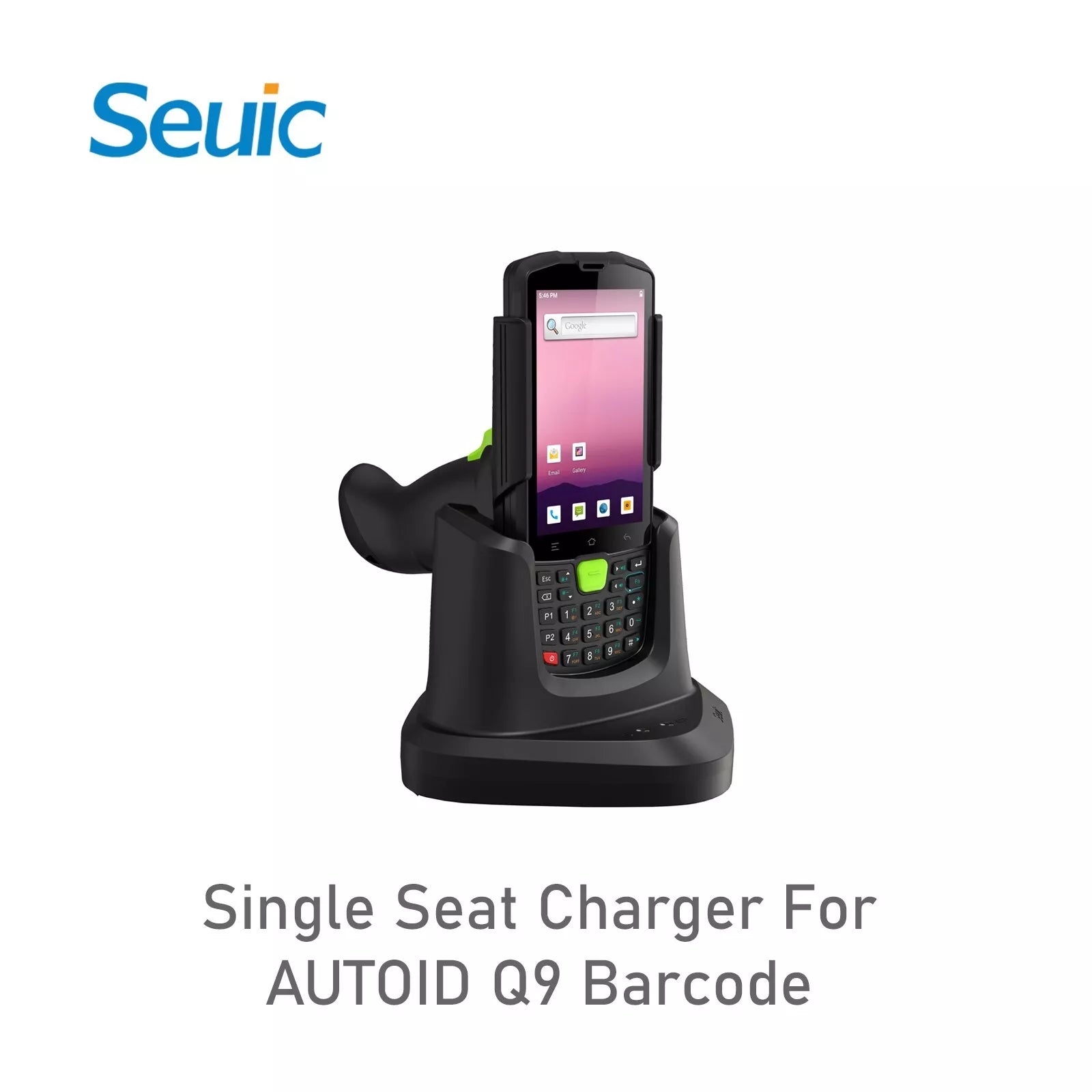

1. Place the PDA on the single seat charger.
2. Using AC power, insert the AC plug of the supporting power adapter into the standard socket and make it contact well.
3. Use the supporting DC charging line to reliably connect the DC head of the power adapter with the single seat charger.
4. The color of the power indicator is red, which is only used as an indication of whether the single seat charger is powered on, that is, the red indicator will be on after the external power adapter is connected.
5. During charging, it is normal for PDA and single seat charger to have slight heating.
6. The PDA charging status is subject to the PDA charging indicator, that is, the red indicator indicates it is being charged, and the green indicator indicates it is fully charged.
